Navien Tankless Water Heater Installation for Irvine Homes: Half-Inch Gas, Condensate, and Permits
Navien tankless water heater installation for Irvine homes on Irvine Ranch Water District water: sizing, descaling, venting, and pairing it with PEX-A.
Swapping a tank for a condensing Navien is one of the more rewarding upgrades a home in Irvine can get, as long as the gas, vent, and drain work is done right. Irvine village associations tend to prefer equipment out of sight, which makes an indoor condensing Navien with a small side-wall termination a frequent request.

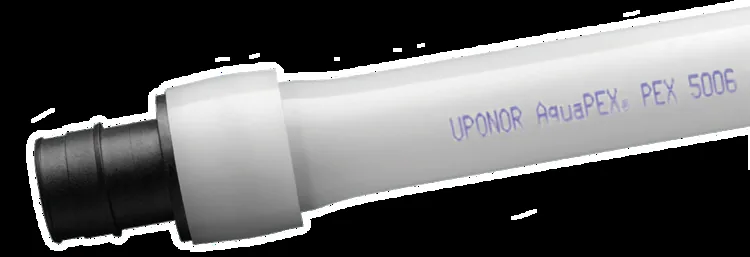

This guide explains each part of a Navien tankless water heater installation, the questions we ask before recommending a model, and where a PEX-A repipe fits in.
Local factors in Irvine
Irvine gets its water from Irvine Ranch Water District, and like most of Orange County it is hard enough that scale builds inside a tankless heat exchanger over time. Homes in Woodbridge, Northwood, University Park, Turtle Rock, Quail Hill were built across different decades, so gas branch sizes, heater locations, and pipe materials vary from street to street.
On every Irvine estimate we measure the gas run, mark the vent termination and condensate drain, and look at the supply piping before naming a Navien model.
What a Navien changes compared with your old tank
| Question | 40–50 gallon tank | Navien condensing tankless |
|---|---|---|
| How is water heated? | Stored and kept hot | Heated as it flows |
| Where does it go? | Floor of garage or closet | Wall-mounted, sealed combustion |
| Exhaust | Metal flue, hot exhaust | Cooler exhaust, plastic vent per manual |
| Extra connections | Usually none | Condensate drain and 120-volt power |
| Faster hot water? | No | Possible with A2 recirculation models |
The last two rows surprise people most, and they are where a careful install earns its keep.
Living with a Navien: descaling and the inlet filter
Orange County water carries enough minerals to build scale inside any tankless heat exchanger over time. Navien, like every tankless maker, calls for periodic flushing. We install isolation valves with service ports so that flush takes a short visit rather than a re-plumb.
Between flushes, clean the cold-water inlet filter now and then and keep an eye on the display for error codes. Whole-house filtration is a separate conversation; we do not sell water softeners as a cure for heater or pipe problems.
Pipe warning signs worth raising at the estimate
| Sign | Likely cause |
|---|---|
| Repeat pinhole leaks | Thinning copper throughout the system |
| Brown water after a vacation | Corroding galvanized lines |
| Gray plastic pipe at the heater or sinks | Polybutylene |
| Pressure drops when two fixtures run | Restricted or undersized supply |
Mention any of these and we will include a repipe option alongside the heater quote.
Navien notes from Irvine jobs
Woodbridge and Northwood garages usually have room for a wall-mounted Navien next to the old tank location, and a side-wall vent termination is small enough that most village associations accept it with a spec sheet. University Park homes are older and more likely to have copper worth inspecting. We check association guidelines first and supply product literature if an architectural form is required.
Bigger is not automatically better
Navien's largest residential units fire at close to 200,000 BTU per hour. That capacity is useful in a busy household, but it also asks the most of your gas line and costs more up front. A model that is too large for a small home simply spends its life idling at low flow.
Our estimate states the peak demand we calculated, the model size that covers it with sensible headroom, and what—if anything—the gas supply needs to support that size.

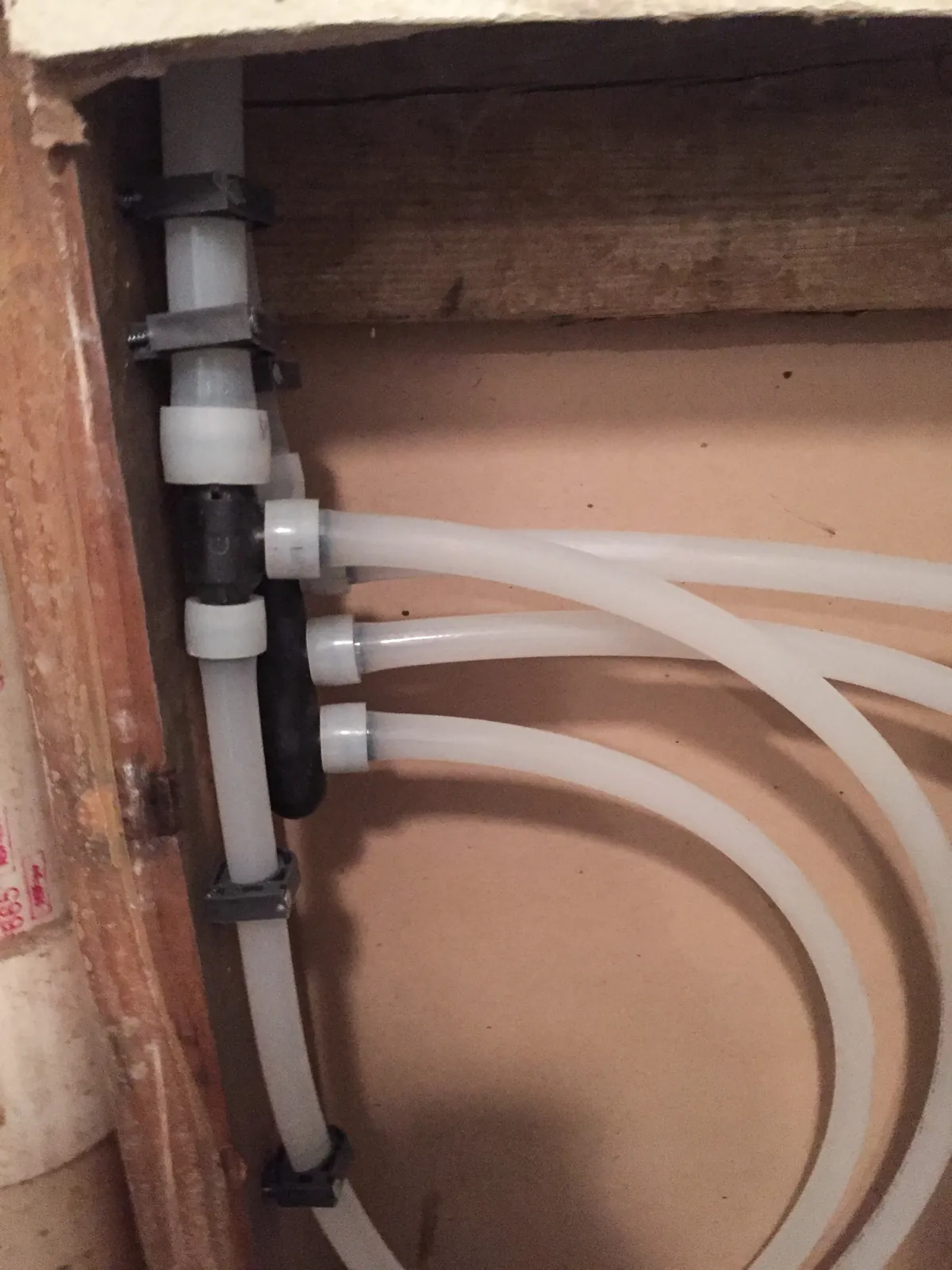

A repipe makes the best recirculation possible
When the supply lines are being replaced anyway, adding a dedicated hot-water return is a small extra step. That gives a Navien A2 the cleanest recirculation setup: no warm water in the cold line, and hot water at the far bathroom in seconds. It also lets us move the heater closer to where the hot water is used.
For Irvine homes already planning a PEX-A repipe, this is often the strongest argument for doing the heater and the piping together.
Condensate: the small line people forget
A condensing Navien produces a steady trickle of slightly acidic water while it runs. That water needs a path to an approved drain, and most installers add a neutralizer cartridge so the acidity does not attack drain piping over time. In a garage install, that can mean a short run to a laundry standpipe or a small condensate pump.
Planning the drain is part of choosing the heater location, which is why we look at it on the first visit rather than on install day.
Checking gas supply before the old tank comes out
A tank heater draws a modest, steady amount of gas. A tankless unit asks for a lot at once, and it asks at the same moment your furnace or cooktop might be running. When supply falls short, the heater lowers its output or shuts down with an error code.
Our gas check covers pipe size, total run length from the meter, the other appliances on the branch, and pressure under load after startup. If upsizing is needed, it is listed in the written scope before any work begins.
FAQ: Navien tankless water heater installation
Can a Navien go where my tank is now? Often, if there is a vent route and a place to drain condensate.
Will my half-inch gas line work? Sometimes. We measure the run and check the manual before saying yes.
Do I need a permit? Yes, in every Orange County city we serve.
Do you sell water softeners? No. Filtration is optional and handled as a separate discussion.
Next step for Irvine homeowners
Want to know whether your Irvine home is ready for a Navien? Request a free quote at (949) 524-2362 or [email protected] and we will check gas, venting, and piping on one visit. Repipe OC, 23821 Hillhurst Drive, Laguna Niguel, CA 92677 · CSLB #1087885 C-36.
